Aromatic heterocycles

Written by J.A Dobado | Last Updated on April 22, 2024

What are aromatic heterocycles?

A heterocyclic compound is an organic compound in which one or more of the carbon atoms in the backbone of the molecule has been replaced by an atom other than carbon. Typical heteroatoms include nitrogen, oxygen and sulphur. Of this group, those that obey Hückel’s rule are called aromatics.

Heterocycles with 6 atoms and 6 electrons π

aromatic heterocycles: azabenzene pyridine
Azabenzene (pyridine).

Fully unsaturated 6-membered heterocycles can be considered as a benzene molecule in which one or more carbon atoms have been replaced by a heteroatom.

Pyridine (or azabenzene) is the simplest of these compounds, with one nitrogen atom in the ring.

Like benzene, pyridine is planar, and the only structural difference with benzene is the distortion caused by the shorter distance C—N than that of the C-C bond.

aromatic heterocycles: azabenzene pyridine hybrid orbitals sp2 for carbon and nitrogen

It can be represented by a cyclic structure consisting of 5 carbon atoms sp2 to each of which is bonded a hydrogen, and a nitrogen atom sp2.

Each of the 6 atoms in the ring has an p orbital orthogonal to the plane of the ring. It has a structure similar to benzene.

A complete cycle of p orbitals with 6 electrons, but differs in that it has an unshared pair of electrons from nitrogen in the plane of the ring.

Like benzene, pyridine can be represented by two Kekulé resonance structures.

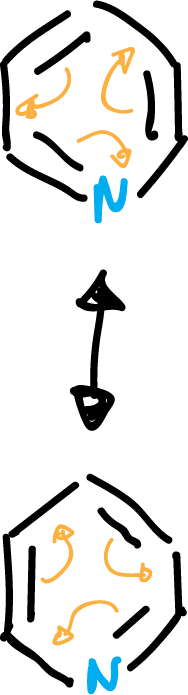

aromatic heterocycles: azabenzene pyridine two resonance structures

The theory of molecular orbitals (TOM) is used to interpret the electronic structure of benzene and pyridine. The atomic orbitals combine to form molecular orbitals.

In the Hückel approach, the electrons in the p orbitals are treated independently of those forming the σ bonds in the plane of the ring.

The 6 p orbitals combine to give 6 delocalized π molecular orbitals each of which can contain a maximum of 2 electrons.

The calculation of the energy of these orbitals leads us to conclude that three of them have lower energy than the isolated p, while the energy of the other three is higher.

The three lowest energy orbitals (π bonding orbitals) can accommodate the 6 electrons.

The higher energy orbitals (π* anti-bonding) remain empty.

Hückel aromaticity rules

Hückel defines aromatic molecules as:

Planar molecules that present a complete and uninterrupted cycle of p orbitals, stabilizes when they have (4n + 2) πelectrons, for n = 0, 1, 2, 3, 4, … etc.

Benzene, pyridine, and other analogs with 6 π electrons obey the Hückel rule when n = 1, so they are classified as aromatic molecules.

When we plot the π orbitals of benzene and pyridine, it is observed that the size of the circles roughly indicates the relative coefficients of the orbitals, and the red and blue circles indicate the opposite phases of the wave functions.

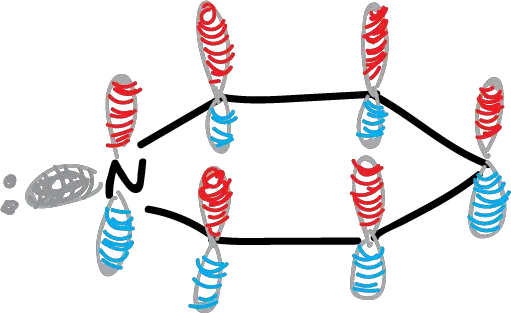

fig-01 (OM benceno y piridina)

The orbitals of pyridine are similar to benzene but there are two notable differences:

  • The π orbitals of pyridine are of lower energy than those of benzene, a consequence of the higher electronegativity of nitrogen relative to carbon.
  • The higher energy (HOMO) occupied OM molecular orbitals of benzene are degenerate (of equal energy), π2 and π3. The HOMO of pyridine have different energy (the π2 has lower energy than the π3). The π2 orbital of pyridine is the HOMO. In addition, the π2 has a large coefficient in nitrogen.

The relationship between the structure of benzene and that of pyridine also applies to other six-membered conjugated ring systems with more than one nitrogen atom.

aromatic heterocycles: azabenzene pyridine similarities with benzene

The HOMO energy decreases as the number of nitrogens increases. Similarly, so does the LUMO, so the HOMOLUMO difference is constant.

aromatic heterocycles: azabenzene pyridine similarities with benzene

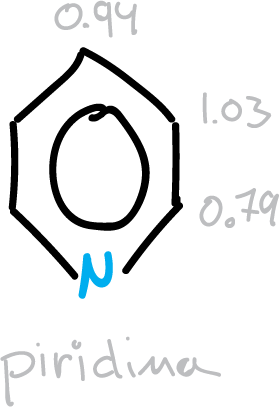

In the pyridine and related heterocycles there is lower electron density π on the carbon atoms of the ring compared to the benzene. This is especially noticeable at the ortho and para positions.

aromatic heterocycles: azabenzene pyridine similarities with benzene

For this reason these heterocycles are called π-deficient heterocyclic compounds.

aromatic heterocycles: azabenzene pyridine π-deficient heterocyclic compound

Other heterobenzenes

The only atom other than nitrogen in the first row of the periodic table that can replace the CH group of benzene in an uncharged aromatic heterocycle is boron.

Borabenzenes, despite their very simple structure and the strength of the B—C bond, have not been isolated in the free state (without a donor ligand on the boron atom) because they are powerful Lewis acids.

Some of its complexes have been prepared and 1H-boratobenzene, which is similar to benzene but charged, has been isolated as a lithium salt.

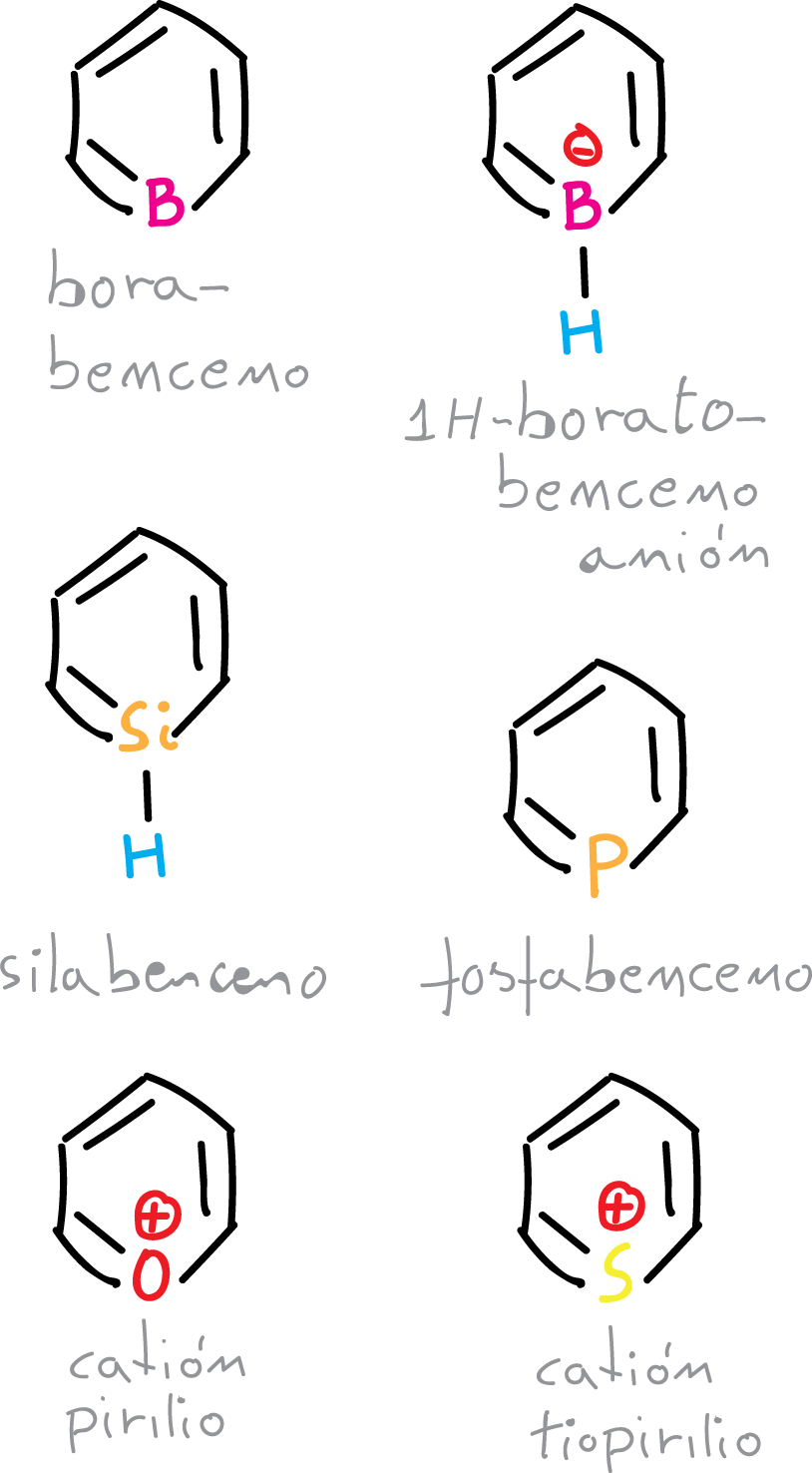

aromatic heterocycles: Borabenzenes

On the other hand, uncharged aromatic heterocycles can also incorporate atoms such as silicon, phosphorus, arsenic, and of the second or subsequent row in groups 14 and 15.

In addition, other group 16 heterocycles, including oxygen, sulfur, selenium and tellurium, can be included in the positively charged species.

Heterocycles with 5 atoms and 6 electrons π

Unsaturated planar heterocycles containing 5 atoms can be considered aromatic if they contain 6 electrons.

There is no analogous carbocycle other than the cyclopentadienyl anion.

aromatic heterocycles: 5 atoms and 6 electrons π

This molecule has a symmetrical pentagon structure with 5 carbon atoms with sp2 hybridization and a cyclic set of 5 porbitals with 6 electrons.

If we consider pyrrole, it can be an example of a 5-membered aromatic heterocycle. Pyrrole is a planar molecule, which indicates that the nitrogen atom has sp2 hybridization. Furthermore, the 3 σ bonds of nitrogen are located in the molecular plane, and the p orbital, oriented orthogonally to the molecular plane, contains the unshared electron pair.

aromatic heterocycles: pyrrole

The p orbitals give rise to π clouds above and below the plane of the ring. They are formed by the p orbitals of the carbons and that of nitrogen. It is a cloud derived from 5 p orbitals, but containing 6 σ orbitals (nitrogen with 2). It therefore satisfies Hückel’s rule of 4n + 2, when n = 1.

The electron pair of nitrogen is involved in the formation of the π-electron cloud. Therefore, this leads to a lower basicityof pyrrole compared to pyridine. The molecular orbitals of pyrrole could be represented as follows:

fig-01 (OM pirrol)

It manifests itself in the splitting of the π2 and π3 orbitals, with π2, which is located on nitrogen, being the lowest energy orbital.

The calculated p electron distribution in pyrrole shows that the ring system is electron rich (6 electrons in 5 atoms). In addition, it is observed that carbon atoms have a higher electron density in π than in benzene. Although this density is higher in nitrogen. Therefore, due to their higher electron density π in carbon, compared to benzene, they are called π-excedent heterocyclic compounds.

aromatic heterocycles: pyrrole; π-excedent heterocyclic compounds

The 5-membered aromatic heterocycle group is much larger than the 6-membered group because one of the atoms in the ring may be divalent and thus other heteroatoms, such as oxygen or sulfur (e.g., furan or thiophene), may be present.

Furthermore, for these derivatives it is possible to construct neutral aromatic heterocycles by replacing one CH with a nitrogen.

aromatic heterocycles: 5-membered aromatic heterocycle group; neutral aromatic heterocycles

However, those containing additional nitrogen atoms to the carbons become increasingly deficient in π  electrons as the number of nitrogens increases.

Benzofused systems

Compounds with structures in which a benzene ring is fused to another aromatic ring retain their aromatic properties although somewhat modified.

aromatic heterocycles: 5-membered aromatic heterocycle group; neutral aromatic heterocycles

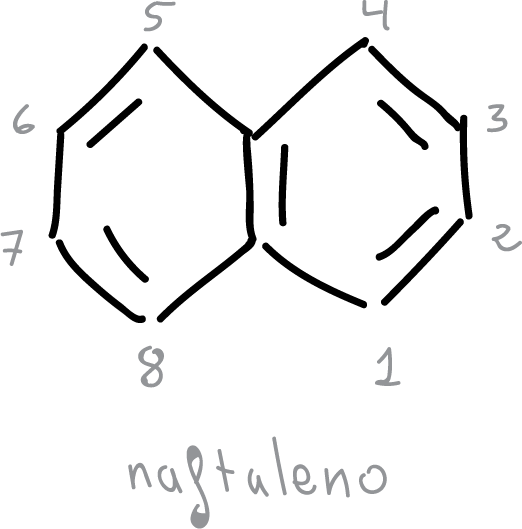

  • In naphthalene, the C1—C2 bond is shorter than C2—C3.
  • The hexagonal symmetry of benzene is lost.
  • However, naphthalenes retain the characteristic properties of aromatic compounds.

Similarly, when a heterocycle is fused to a benzene ring, the system is classified as aromatic. Thus, we find the 6-membered nitrogen-fused compounds, such as azanaphthalenes:

aromatic heterocycles: 6-membered nitrogen-fused compounds

These compounds, such as naphthalene, show an alternation of bond lengths that is consistent with Kekulé structures.

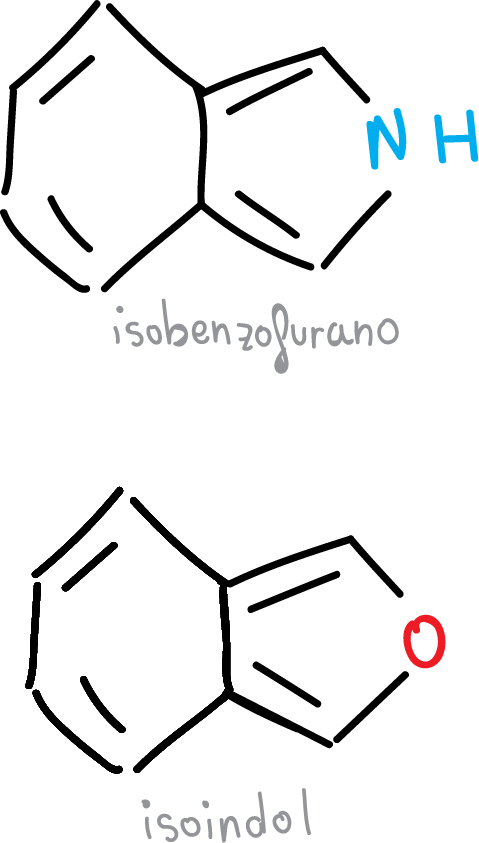

Another series of benzofused compounds would be formed by fused 5-membered heterocycles.

aromatic heterocycles: 5-membered nitrogen-fused compounds

They also have a high degree of aromaticity. In contrast, those in which the heterocycle binds to benzenethrough the C3—C4 bond, which is the longest of the C—C bonds, have a much lower degree of aromaticity, such as the heterocycles in the figure.

aromatic heterocycles: 5-membered nitrogen-fused compounds; high degree of aromaticity

There is, as detailed below, a great variety of heterocycles fused to structures other than benzene. Thus, some of them are very relevant as for example the case of purine.

aromatic heterocycles: 5-membered nitrogen-fused compounds; purine
Purine.

Aromaticity criteria in heterocycles

Thermodynamic criteria

Antiaromatic systems are defined as conjugated cyclic systems that are thermodynamically less stable than the corresponding cyclic analogs.

  • Aromatic when the delocalization energy of the cyclic system is greater than that of the acyclic system. (4n+2 Hückel).
  • Non-aromatic when the delocalization energy of the cyclic system is equal to that of the acyclic system. (independientes).
  • Antiaromatic when the delocalization energy of the cyclic system is less than that of the acyclic system. (4n Hückel).

Examples

aromatic heterocycles: Anti-aromatic heterocycles (anti-Hückel 4n)
Anti-aromatic heterocycles (anti-Hückel 4n).

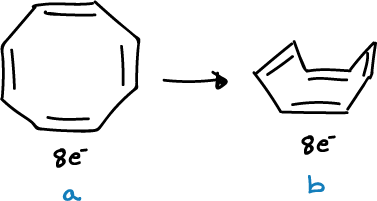

aromatic heterocycles: Cyclooctatetraene. a) planar antiaromatic (anti-Hückel 4n) structure. b) non-planar non-aromatic structure.)
Cyclooctatetraene. a) planar antiaromatic (anti-Hückel 4n) structure. b) non-planar “non-aromatic” structure.

Both the cation and anion of cyclooctatetraene are planar and are aromatic because they have 6e- and 10e- (Hückel’s rule 4n+2), respectively.

Bond length

Aromatic compounds, in general, show a bond distance intermediate between the standard double C=C and single C—Cbond values. In benzene, the carbon-carbon distance is 1.395 Å ≅ 1.4 Å, intermediate between the values of the C=Cdouble bond which is equal to 1.33 Å and that of the C—C single bond equal to 1.53 Å.

For 6-membered heterocycles, this intermediate value is close to the relational values, always considering the perturbation caused by the heteroatom.

  • Intermediate values between double and single bond for the 6-membered ones, and as a consequence there is a cyclic delocalization of the π electrons in those compounds.
  • For the 5-membered rings there is a considerable degree of alternation which implies a localization of structures. Oxygen has the highest degree of localization.
  • Fused heterocycles have a higher degree of localization.

Different structural indices of aromaticity have been proposed as a function of bond distances that can quantify aromaticity in molecules. In the figure, data for different heterocycles are summarized.

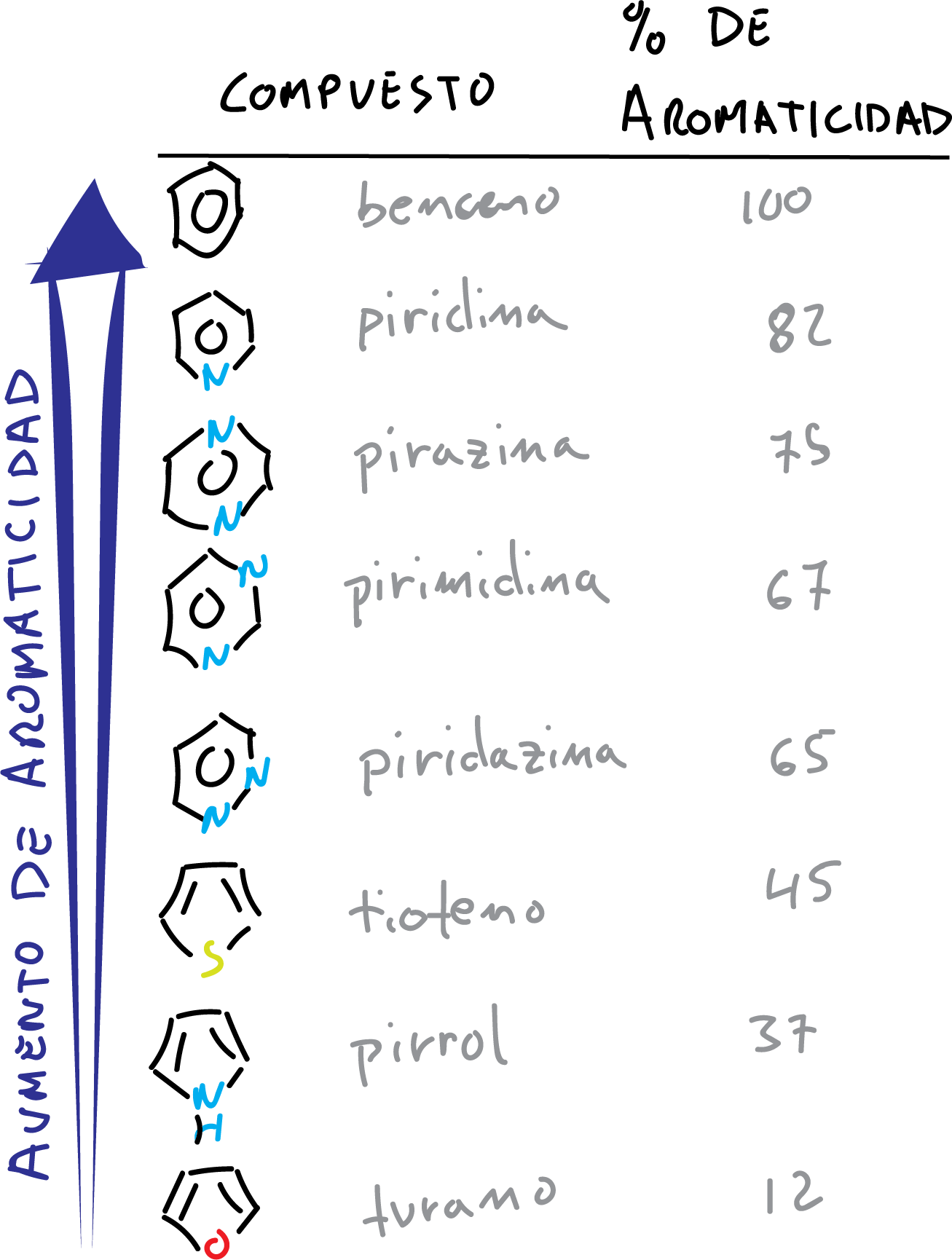

aromatic heterocycles: Percentage (%) aromaticity of different heterocycles (4n+2=6 Hückel π-electrons ) compared to benzene.
Percentage (%) aromaticity of different heterocycles (4n+2=6 Hückel π-electrons) compared to benzene.

NMR spectroscopy on heterocycles

The low-field displacement of aromatic protons relative to vinyl protons is justified, due to an induced circular diamagnetic current opposing the external field, inside the ring (ring diamagnetic current).

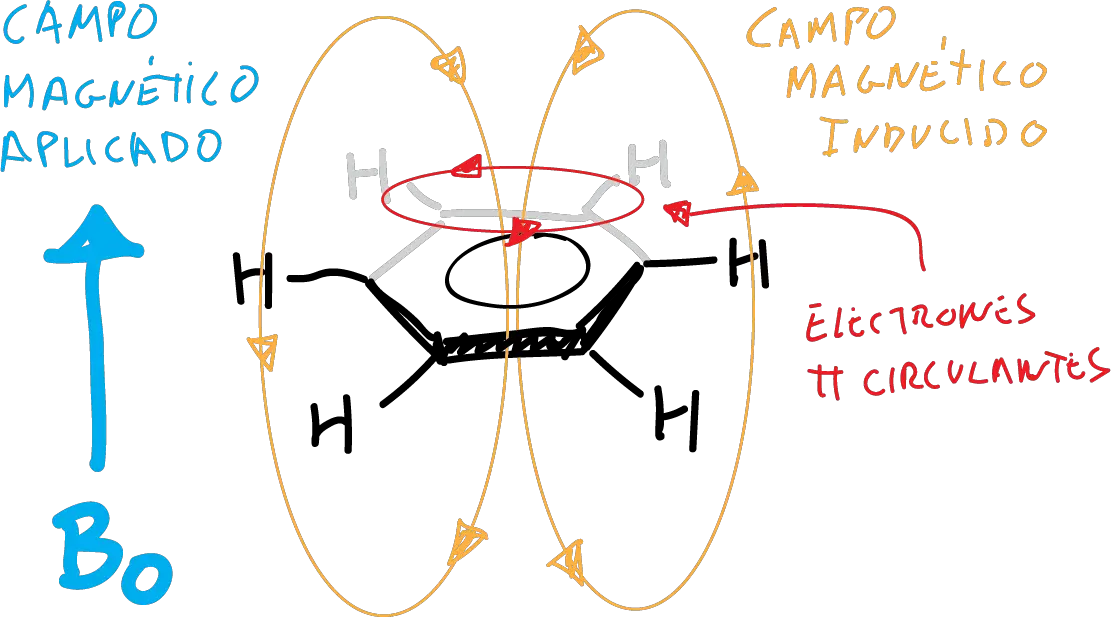

aromatic heterocycles: benzene applied magnetic field induced field induced field delocalisation pi electron NMR.

This does not occur in antiaromatic compounds, and therefore the aromaticity of a carbocycle can be measured by its NMR data.

  • In heterocycles there is no rule, since it is not easy to find antiaromatic heterocyclic compounds for comparison.
  • Chemical shifts are influenced by factors other than the induced diamagnetic current, including distortion of the electron distribution π and the solvent effect.

A summary of the values of the chemical shifts (δH) of the heterocycles is presented in the following figure. The effect of the diamagnetic current, as can be seen is more qualitative than quantitative. A decreasing current is observed in the following order: benzene pyridine > thiophene > pyrrole > furan.

aromatic heterocycles

The delocalization energy in pyridine and other benzenoid rings is the same as that of benzene, if the perturbation caused by the exchange of CH for nitrogen is not considered. Thus, they are progressively lower for other heterocycles: quinoline, pyrimidine, pyrrole and thiophene.

aromatic heterocycles: chemical shifts 1H nmr ppm

Aromatic character and other types of unsaturated heterocycles

Monocyclic systems obeying Hückel’s rule

Many heterocycles obeying Hückel’s rule have been synthesized in unsaturated monocyclic systems. Thus, the heterocycle, usually nitrogenous, can form part of a double bond, as in pyridine, or donate a pair of electrons to the πsystem, as in pyrrole.

For heterocycles of the type:

aromatic heterocycles: Aromatic character and other types of unsaturated heterocycles

we would be in the limiting case, but there is no evidence that a planar cyclic structure having 6 π electrons is favored in such compounds.

Ozone, for example, is not cyclic and some triaziridine that has been isolated reverts rapidly to the open form. The results of OM calculations indicate pyramidal nitrogen and cyclic structures with higher energies than for the linear forms.

In 4-membered systems of the type:

aromatic heterocycles: 4-membered rings

only the dithiote has been isolated:

aromatic heterocycles: 4-membered rings; dithiote

and there is no certainty that the ring is aromatic.

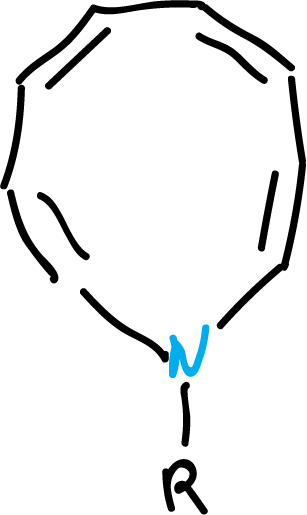

On the other hand, different heterocycles with 10 π electrons of different types have been synthesized. Thus, heterocycles with cis double bonds have been obtained, incorporating a pyrrole nitrogen in a 9-membered ring, or two nitrogens in an 8-membered ring, as shown in the figures.

aromatic heterocycles: 10π electrons; 8-membered rings; dithiote

Despite the strain, both compounds appear to be flat enough to support an annular current unless the substituents (-R) are strongly electron withdrawing.

aromatic heterocycles: 10π electrons; 8-membered rings; dithiote

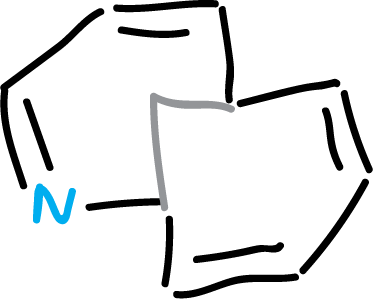

In this case, the structures will not be planar, due to a higher localization, of the electron pairs, on the heteroatoms, when -R is electron-withdrawing.

A third type of structure is one containing two transoidal double bonds joined by a methylene bridge. The system is shown in figure.

aromatic heterocycles: 10π electrons; 8-membered rings; dithiote

They can be considered aromatic, according to bond length criteria and their 1H NMR spectra.

However, there are still some larger aza-anulenes containing 14 π or 18 π electrons. Their aromaticity has been revealed by their 1H NMR spectra.

There are also some fused heterocycles other than benzofused ones that show signs of cyclic delocalization. Indolizine, for example, shows considerable resonance energy,

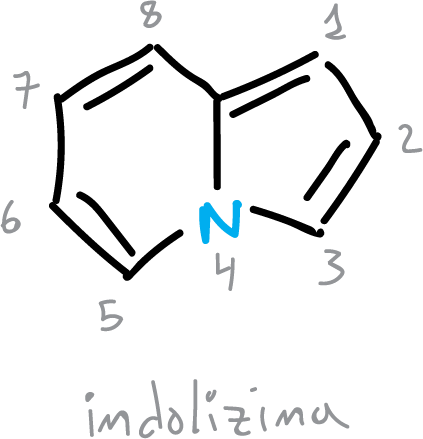

aromatic heterocycles: indolizine atom numbering

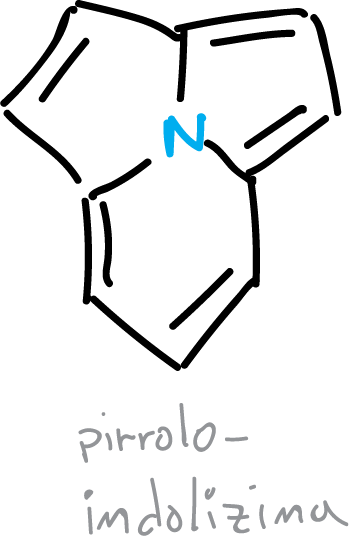

In addition, the heterocycle pyrroloindolizine (pyrrolo[2,1,5,cd]indolizine) also shows electron delocalization on the 3 rings.

aromatic heterocycles: pyrroloindolizine

Tautomerism of heteroaromatic compounds

Many heteroaromatic compounds can exist in two or more tautomeric forms. The most typical example is the pyridines which have a hydroxyl or amine substituent at the α position. Then, the hydroxyl or one of the amine protons can be located either on the heteroatom or on the heterocycle.

Equilibria are usually established in solution, by rapid proton transfer.

aromatic heterocycles: Tautomerism

These equilibria are of particular importance in pyrimidine and purine derivatives, because they are part of nucleic acids.

aromatic heterocycles: Tautomerism

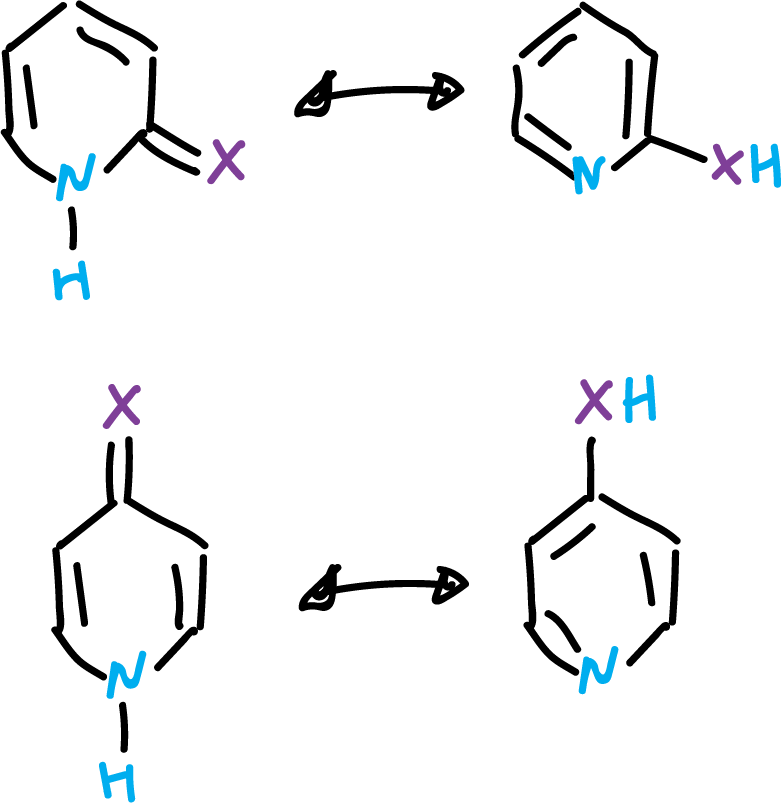

If a tautomer is predominant in solution, its structure is usually represented as such, and this is detected by comparison of its spectroscopic data with its alkylated derivatives.

Examples:

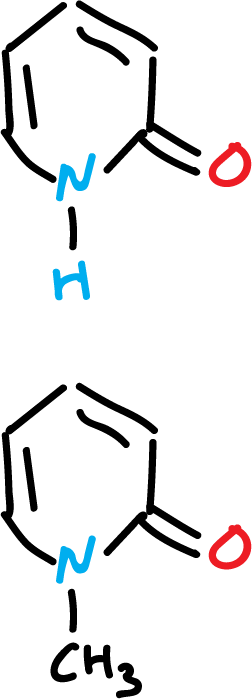

The spectroscopic data of 2-pyridone are very close to those of N-methyl-2-pyridone.

aromatic heterocycles: Tautomerism

Chemical shifts of nitrogens in (15N-RMN) are often used to assign the preferred structure of a tautomeric equilibrium.

In another example, pyrazine-2-thione, exists (according to 15N-RMN shift data) as shown in the figure, 97 % as 2-thione.

aromatic heterocycles: pyrazine-2-thione; chemical shifts of nitrogens in 15N-RMN

Polar solvents can shift equilibria, as the tautomers are solvated differently.

Tautomers generally differ in polarity and in their ability to form hydrogen bonds with the solvent. However, it should be clarified that chemical reactions do not necessarily take place on the predominant structure of a mixture of tautomers. Particularly if proton transfer occurs rapidly.

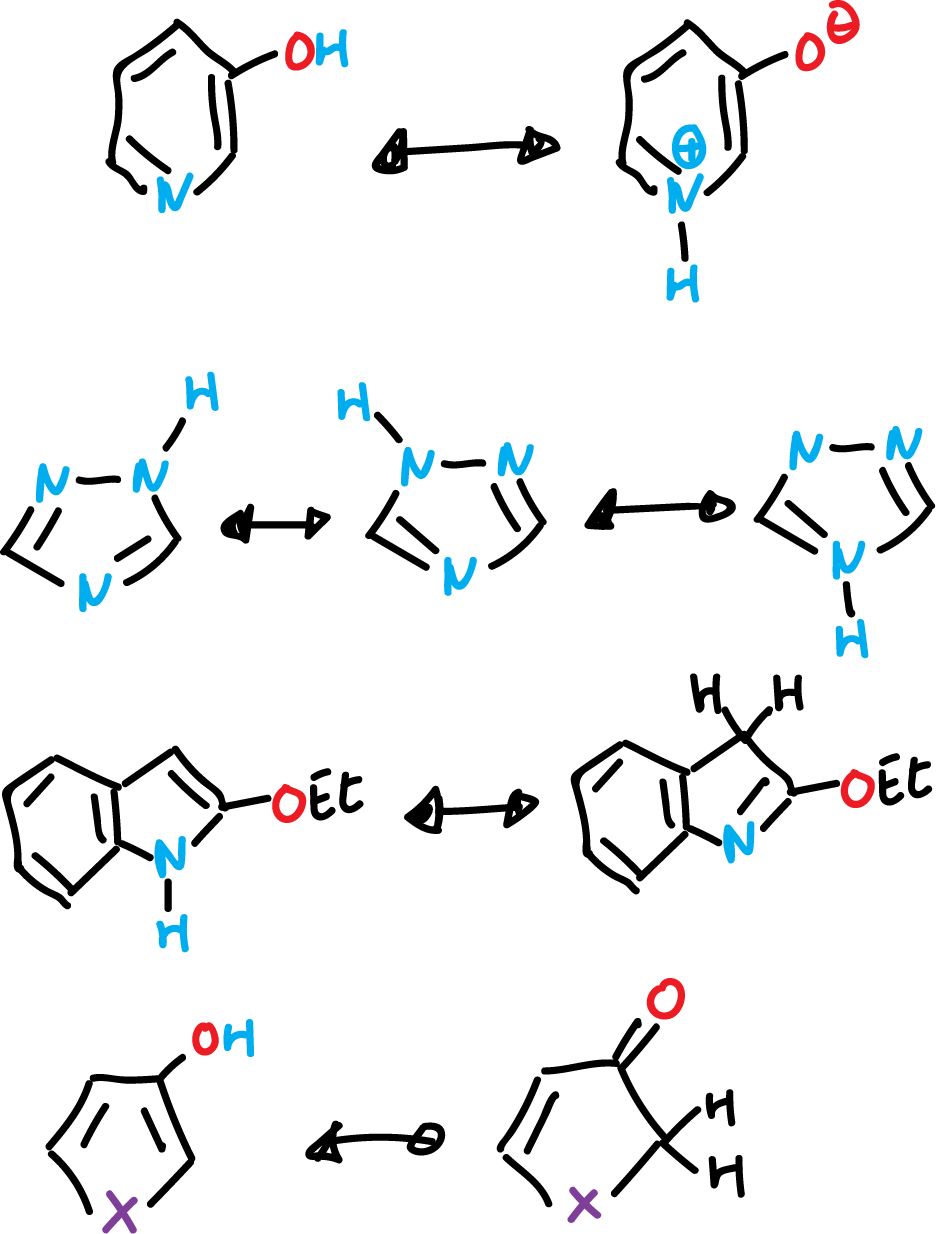

There are other types of tautomerism (e.g., the first 3-hydroxy-pyrimidine ↔ pyrimidinium oxide equilibrium) in aromatic heterocycles collected in the following scheme:

aromatic heterocycles: 3-hydroxy-pyrimidine / pyrimidinium oxide equilibrium
